Monitor Tester Provision 5″ AHD/TVI/CVI/CVBS RS485. Network and Coax testers. Up to 8MP with EU&US socket
TM-54In1-2
- Display: It features a 5-inch TFT Color LCD with an 800 x 480 resolution.
- Compatibility: The monitor is designed to work with various HD analog video formats (4-in-1 support): AHD, CVI, TVI, and CVBS, for cameras up to 2MP resolution.
- Video Input: BNC x 1, VGA x 1.
- Power Output: Includes a 12VDC output and a 5VDC output (Micro USB plug supplied) for powering cameras or other devices.
- Audio: Features an audio input with a built-in speaker.
- Testing Capabilities: It functions as a coax and network cable tester, and supports PTZ control via RS-485.
- Portability: The device has a built-in rechargeable battery for hands-free use on site

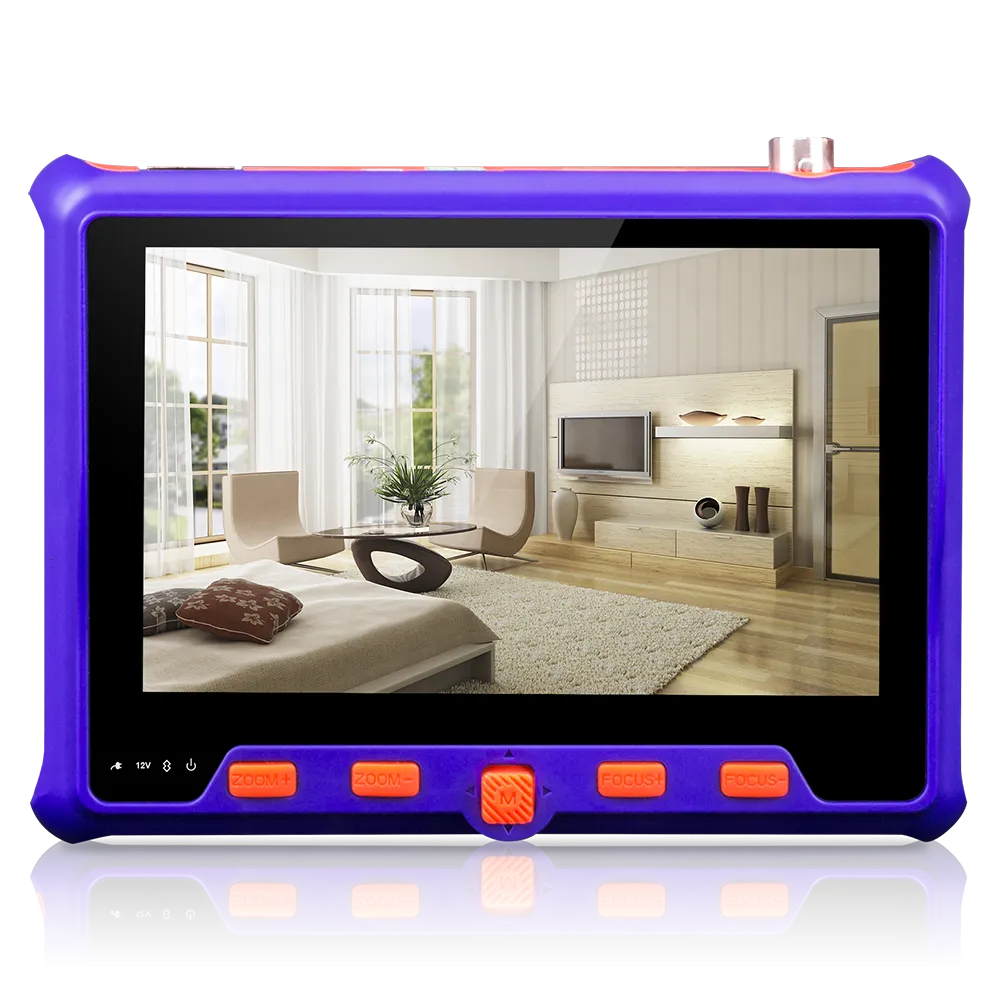

The Provision ISR TM-54IN1-2 is a portable 5-inch TFT LCD test monitor designed for installing and maintaining CCTV camera systems, supporting various analog video formats up to 2MP resolution. It includes features like a built-in battery, cable testing, and power output for cameras, making it a convenient all-in-one tool for technicians.
Additional information
| Rezolucioni | 5.0 inch VGA TFT-LCD, 800x 480 resolution |
|---|---|
| Power Supply | DC12V / 1A Power Output |
| Audio | Built-in Speaker |
| Bateria | 6 hours work after full charge, Built-in 3.7V / 3000mA battery |
