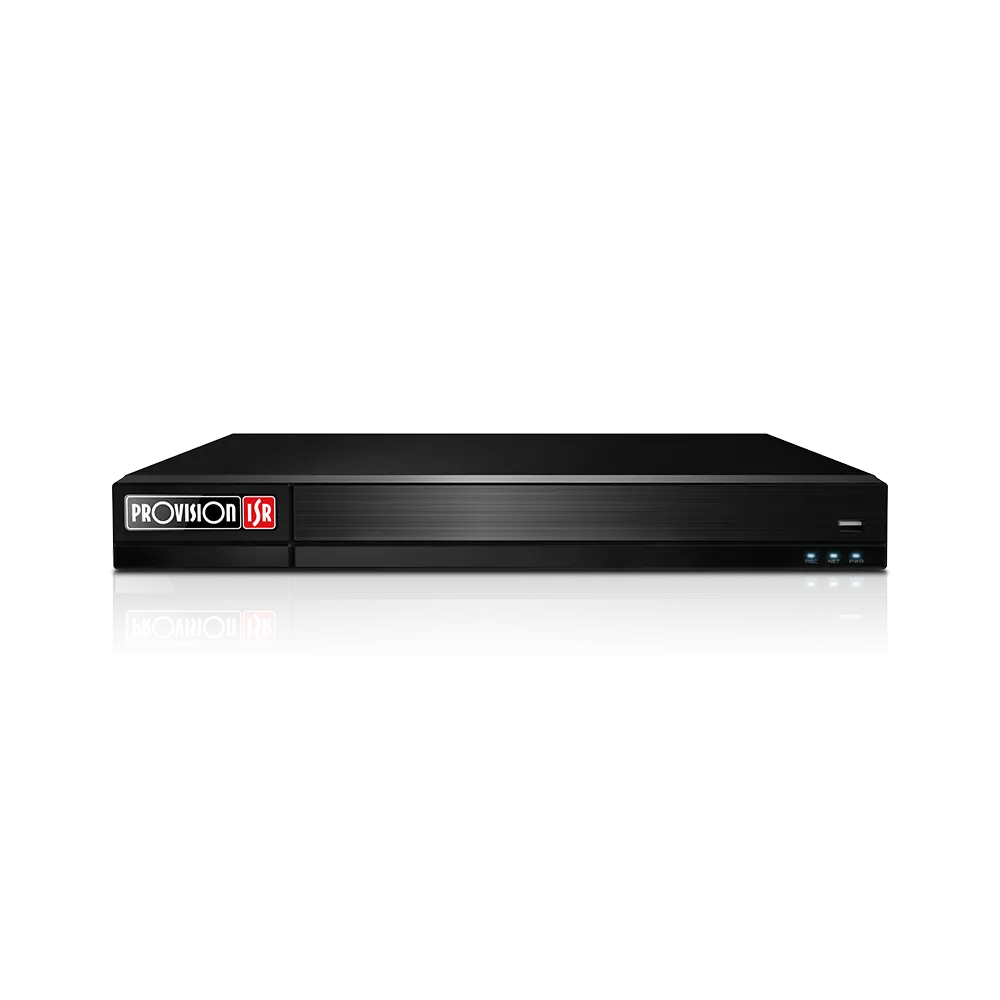

NVR Provision 16 Channel 5MP NVR8-16400AN(1U)-V2
- Video Input : 16 Channel Standard Connection (Via RJ-45 Network Port)
- Video Output : HDMI (4K, 1080P), VGA (1080P, 1280×1024, 1024×768)
- Bandwidth :
Incoming: 96Mbps
Outgoing: 96Mbps - Decoding Support :
H.265S/H.265+/H.265/H264 - Recording :
16CH 8MP Real-Time
FPS: 400 (PAL) / 480 (NTSC) - Playback :
Local: 16Ch Simultaneously
Remote: 16Ch Simultaneously - Audio :
Input: 1CH + IPC Inputs
Output: 1CH + IPC Output
2 Way Audio - Alarm :
Input: 4+IPC
Output: 1+IPC - Storage :
2 x SATA (Up to 10TB each) - USB Port :
2 USB 2.0 Port - Network :
1 x RJ-45: 10/100/1000Mbps Each
NVR8-16400AN(1U)-V2
16CH 8MP NVR with alarms, and NDAA compliance
Provision-ISR’s NVR8-16400AN(1U)-V2 is an easy-to-install solution for mid-sized installations (up to 16 channels). Check Point Quantum IoT Nano agent is integrated into this model. It provides an advanced threat prevention layer against the common attack vectors at runtime. The device complies with NDAA demands. It features 4 alarm inputs + 1 alarm output and provides you with everything you need for a trouble-free CCTV project.
