XVR Provision 16 Channel 5MP Lite SH-16200A5N-5L(MM)-V2
- Video Input: 16CH Standard BNC + 8CH IP
- Video Output: HDMI – FHD ,VGA ,CVBS
- Recording :
HD Analog: 3K/5MP Lite: Up to 10FPS Per Channel
4MP Lite / 2MP: Up to 12/15FPS Per Channel / 2MP Lite: Up to 25/30FPS Per Channel
IP: 5MP and lower: 25/30FPS Per Channel - Playback :
Local: 16Ch Simultaneously
Remote: 16Ch Simultaneously - Audio :
Input: 1CH + IPC Inputs
Output: 1CH + IPC Outputs - Alarm :
Input: IP Cameras only
Output: IP Cameras only - Storage : 1 x SATA (Up to 6TB each)
- Network : 1 x RJ-45: 10/100Mbps
- PTZ Support : RS-485 / CoC / IP over Network
- Power Supply : DC12V/2A
- Analytics : AI by IPC DDA1 Analytics Supported by the camera
SH-16200A5N-5L(MM)-V2
16CH “4 in 1” + 8CH IP Dynamic Hybrid DVR

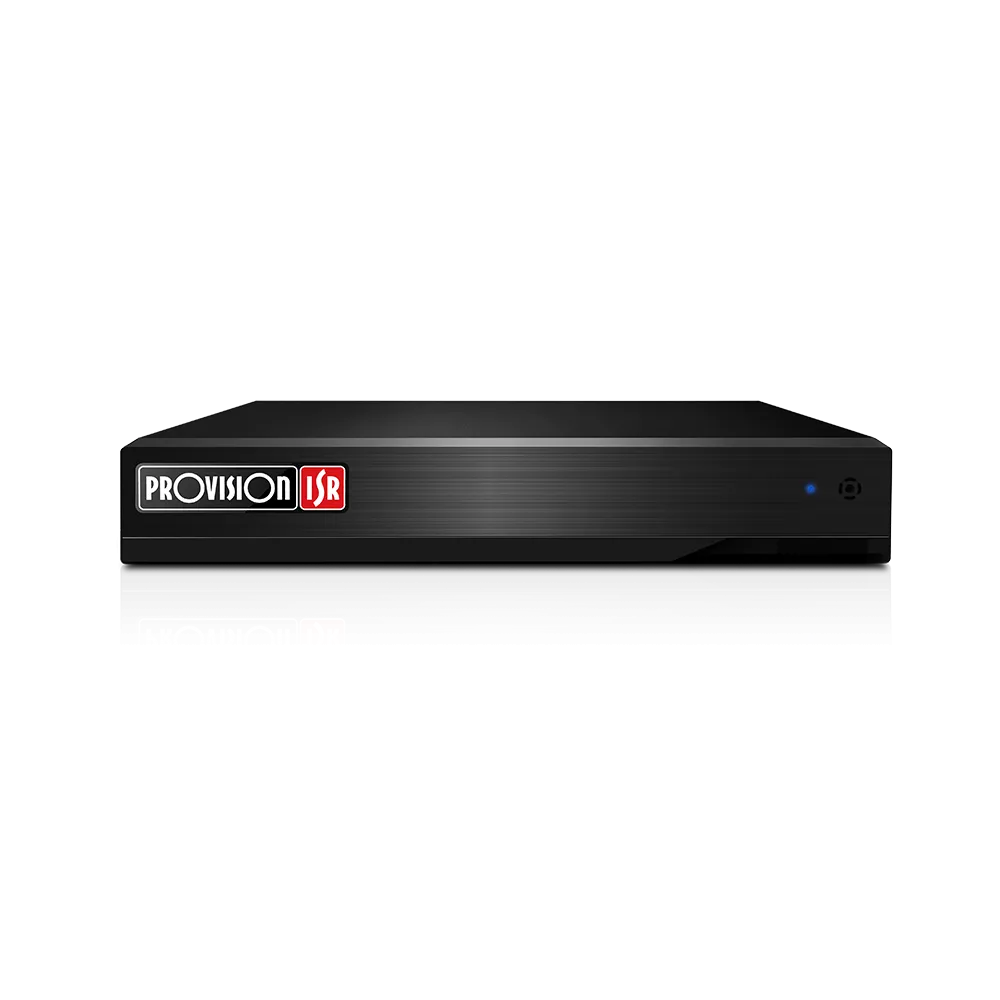

Provision-ISR SH-16200A5N-5L(MM)-V2 is a high-quality dynamic hybrid digital video recorder obtainable in an elegant mini metal case. This technology allows users to add advanced IP cameras alongside analog ones and enjoy high-quality images and other advanced features available on IP cameras only. The recorder supports Provision-ISR Standard Video Analitycs (Pixel Based).
