XVR Provision DVR-5MP Lite, 8CH Video Inputs, NDAA, Small 1U case
- Video Input : 8CH Standard BNC + 8CH IP
- Video Output : HDMI – 4K , VGA , CVBS
- Recording :
HD Analog: 8MP Lite / 3K/5MP / 4MP: Up to 12/15FPS Per Channel /
5MP Lite: Up to 20FPS Per Channel / 4MP Lite / 2MP / 1MP: Up to 25/30FPS Per Channel
CVBS: 960H: Up to 25/30FPS Per Channel
IP: 8MP: 20FPS Per Channel, 5MP and lower: 25/30FPS Per Channel - Playback :
Local: 8Ch Simultaneously
Remote: 8Ch Simultaneously - Audio :
Input: 1CH + IPC Inputs
Output: 1CH + IPC Outputs - Alarm :
Input: IP Cameras only
Output: IP Cameras only - Storage :
1 x SATA (Up to 6TB each) - Network :
1 x RJ-45: 10/100/1000Mbps - PTZ Support :
RS-485 / CoC / IP over Network - Power Supply :
DC12V/2A - Analytics :
AI by IPC: DDA1 Analytics Supported by the camera
SH-8100A5N-8L(MM)
8CH “4 in 1” + 8CH IP Dynamic Hybrid DVR

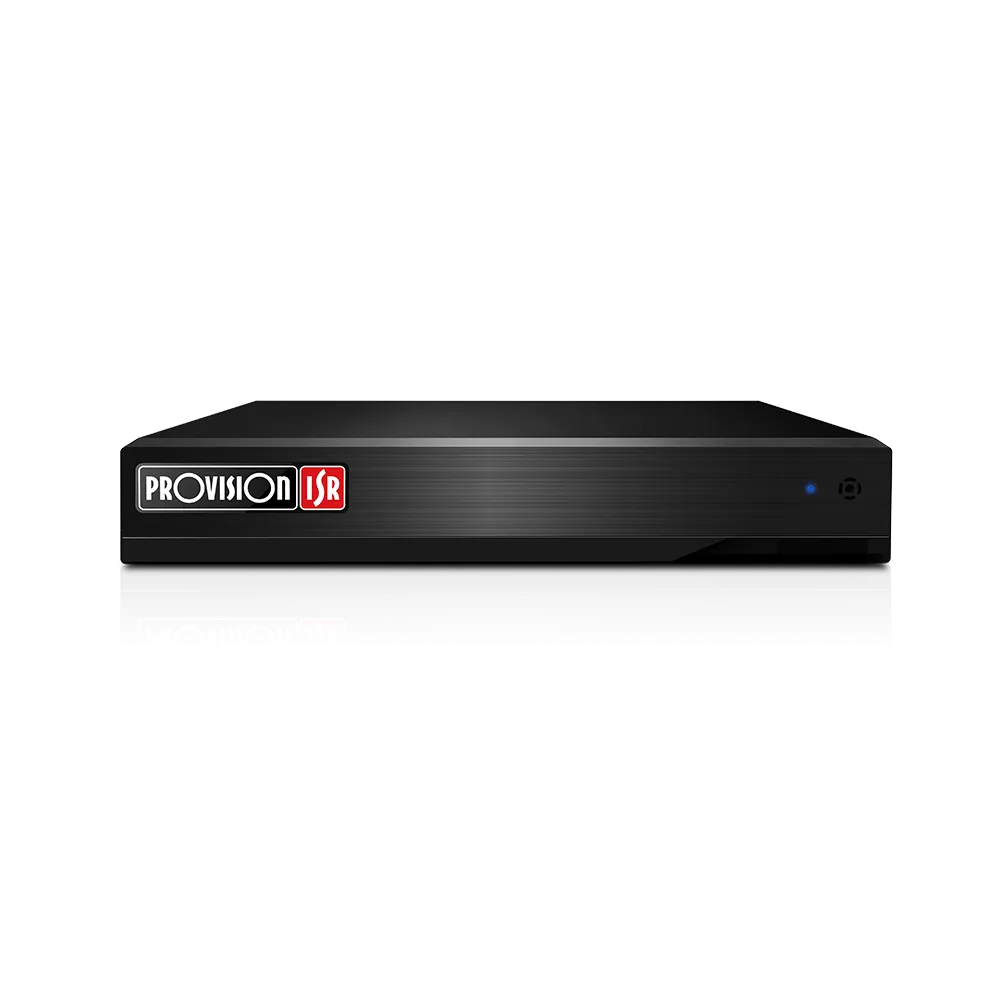

Provision-ISR SH-8100A5N-8L(MM) is a high-quality dynamic hybrid digital video recorder obtainable in an elegant mini metal case. This technology allows users to add advanced IP cameras alongside analog ones and enjoy high-quality images and other advanced features available on IP cameras only. The recorder supports Provision-ISR Standard Video Analitycs (Pixel Based).
